Coaxial To Waveguide Adaptors
Coaxial To Waveguide Adaptors

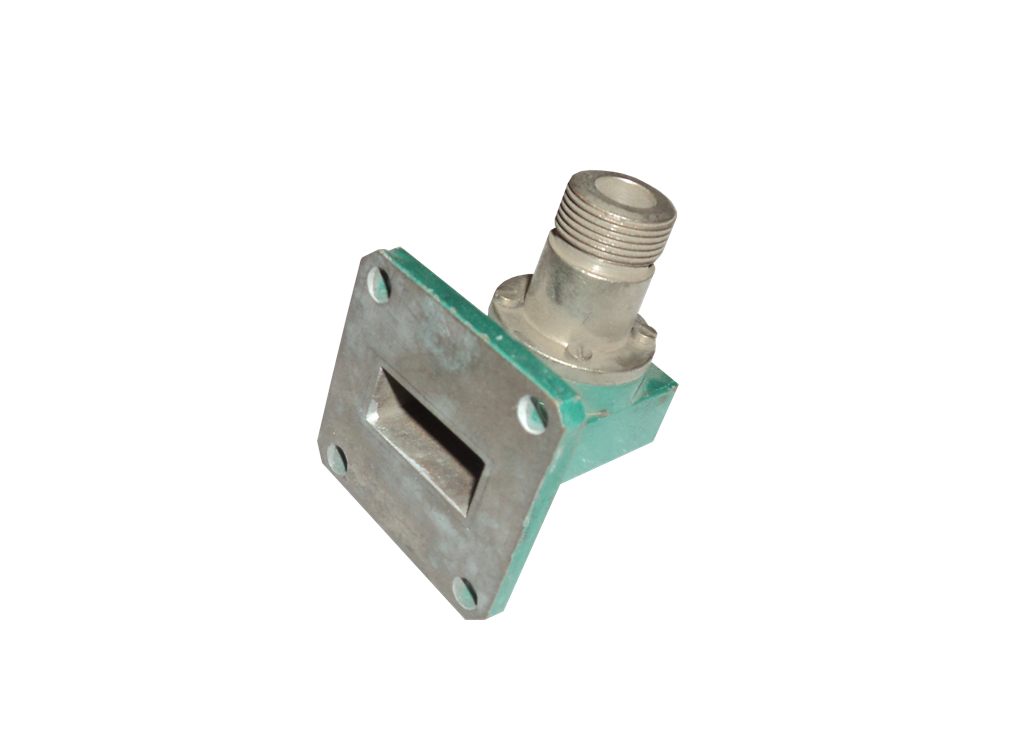

This adaptor consists of a short section of standard waveguide with a probe transition coaxial mounted on broad wall. It transforms waveguide impedance into coaxial impedance Loq VSWR is maintained for optimum coupling.
Specifications
| Model |
Band |
Freq. Range(GHz) |
Waveguide | O/P Connector | VSWR |
|---|---|---|---|---|---|
| SCA-100 | S | 2.60-3.95 | WR-284 | N-TYPE (F) | 1.3 |
| CCA-100 | C | 3.95-5.85 | WR-229 | N-TYPE (F) | 1.3 |
| JCA-100 | J | 5.85-8.20 | WR-137 | N-TYPE (F) | 1.3 |
| XCA-100 | X | 8.20-12.40 | WR-90 | N-TYPE (F) | 1.3 |
| KuCA-100 | Ku | 12.40-18.00 | WR-62 | N-TYPE (F) | 1.3 |
| KCA-100 | K | 18.00-26.50 | WR-42 | N-TYPE (F) | 1.3 |
