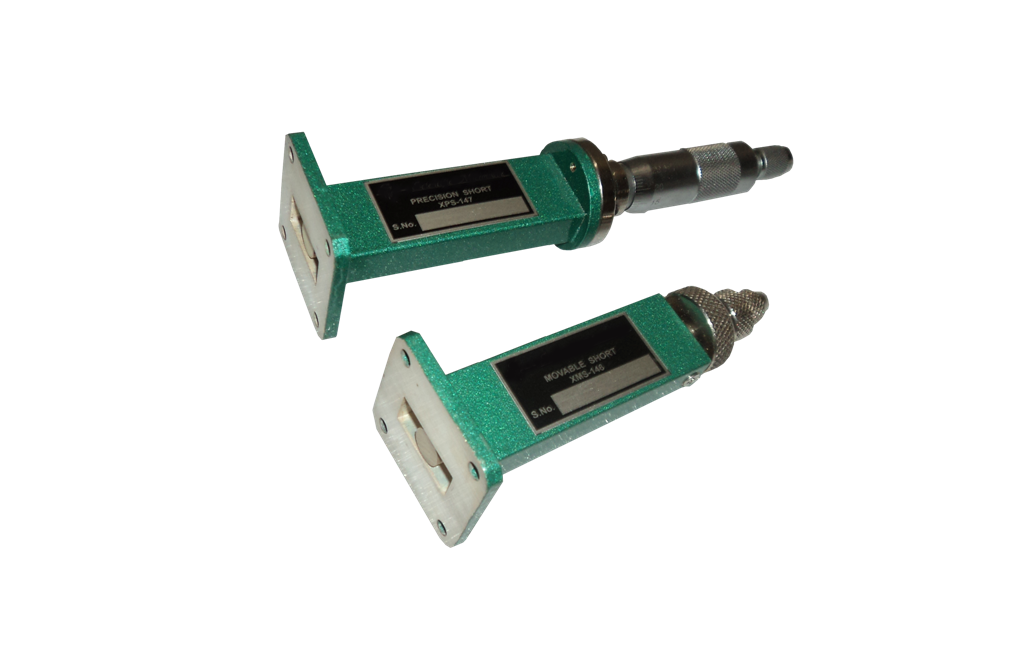

Moveable Short/ Moveable Precision Short
Moveable Short/ Moveable Precision Short
These are used to obtain a phase reference in the calibration of various experimental setup and are also used to vary the effective plane of reflection and therefore the phase of reflected wave. These are also useful in impedance measurement.
Specifications
| Model Movable Short |
Model Movable Precision Short |
Band |
Freq. Range(GHz) |
Waveguide |
|---|---|---|---|---|
| SMS-146 | SPS-145 | S | 2.60-3.95 | WR-284 |
| CMS-146 | CPS-145 | C | 3.95-5.85 | WR-229 |
| JMS-146 | JPS-145 | J | 5.85-8.20 | WR-137 |
| XMS-146 | XPS-145 | X | 8.20-12.40 | WR-90 |
| KuMS-146 | KuPS-145 | Ku | 12.40-18.00 | WR-62 |
| KMS-146 | KPS-145 | K | 18.00-26.50 | WR-42 |
