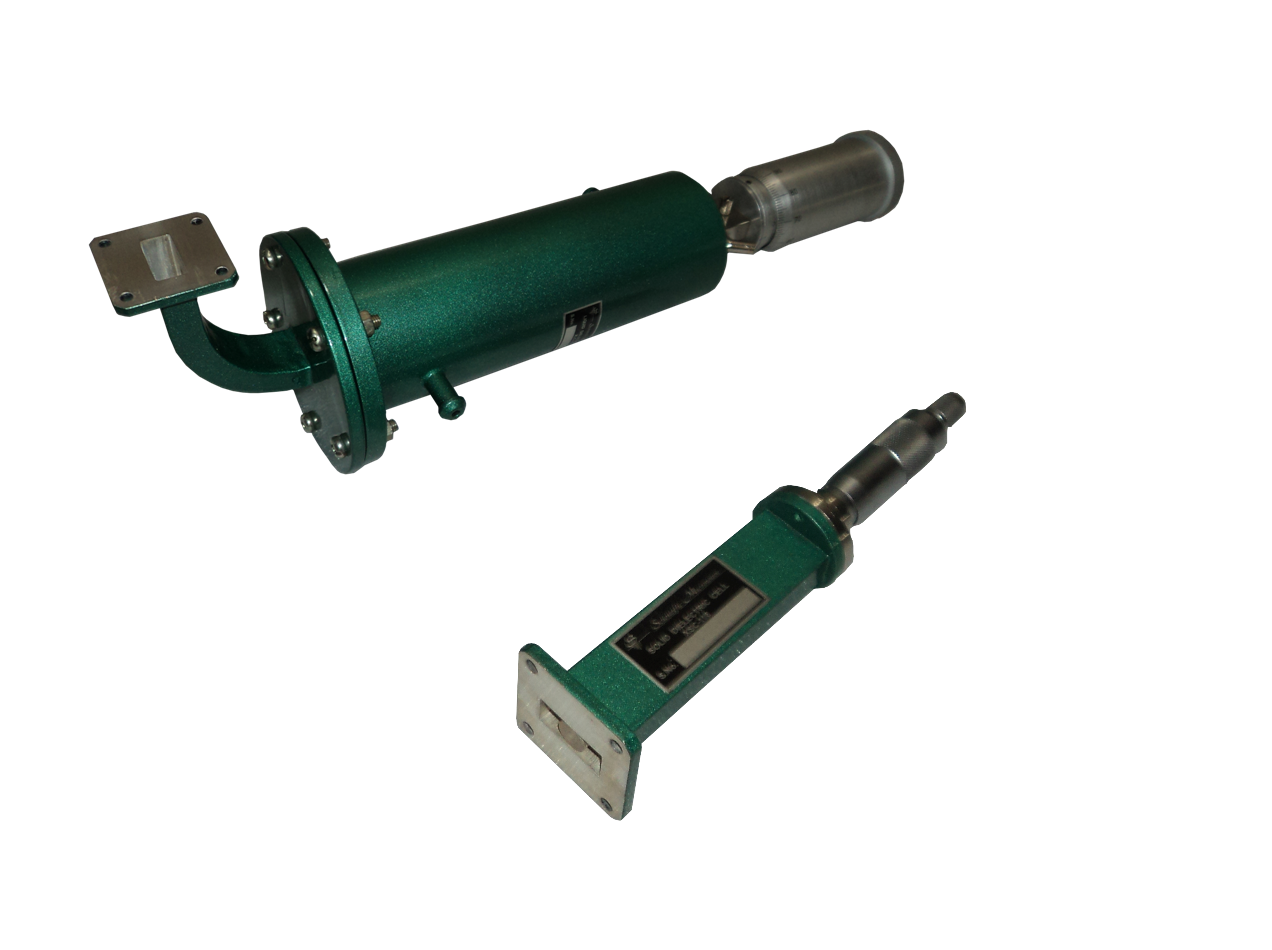

Liquid/Solid Dielectric Cell
Liquid/Solid Dielectric Cell
These are basic measuring devices for the liquid and solid dielectric measurements respectively. These consist of cavity for keeping the sample to be measured and sample can be read by the meant of the micrometer fitted with the plunger.
Specifications
| Model Liquid Cell |
Model Solid Cell |
Band |
Freq. Range(GHz) |
Waveguide |
|---|---|---|---|---|
| JLC 117 | JSC 118 | J | 5.85-8.20 | WR-137 |
| XLC 117 | XSC 118 | X | 8.20-12.40 | WR-90 |
