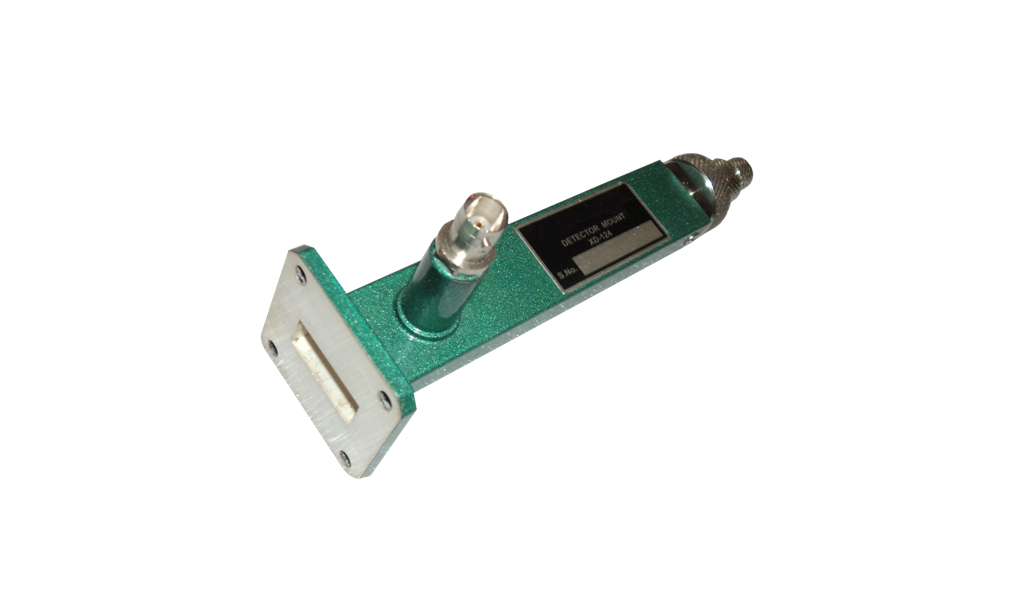

Detector Mount are used detect the low frequency signals with the help of the IN23 detector diode. The Detector Diode is mounted on the broad wall of the waveguide. A shorting plunger is used to tune the max power near the detector diode
Specifications
| Model |
Band |
Freq. Range(GHz) |
Waveguide | O/P Connector | Crystal Diode |
|---|---|---|---|---|---|
| SD-124 | S | 2.60-3.95 | WR-284 | BNC(F) | IN21 |
| CD-124 | C | 3.95-5.85 | WR-229 | BNC(F) | IN21 |
| JD-124 | J | 5.85-8.20 | WR-137 | BNC(F) | IN23 |
| XD-124 | X | 8.20-12.40 | WR-90 | BNC(F) | IN23 |
| KuD-124 | Ku | 12.40-18.00 | WR-62 | BNC(F) | IN23 |
| KD-124 | K | 18.00-26.50 | WR-42 | BNC(F) | IN23 |
